155gsm pp woven geotextile fabric for separation
Quick detail:
Weight: 155g/m^2
Width: 3.81m(12.5') 4.57m(15') 5.33m(17.5')
Description:

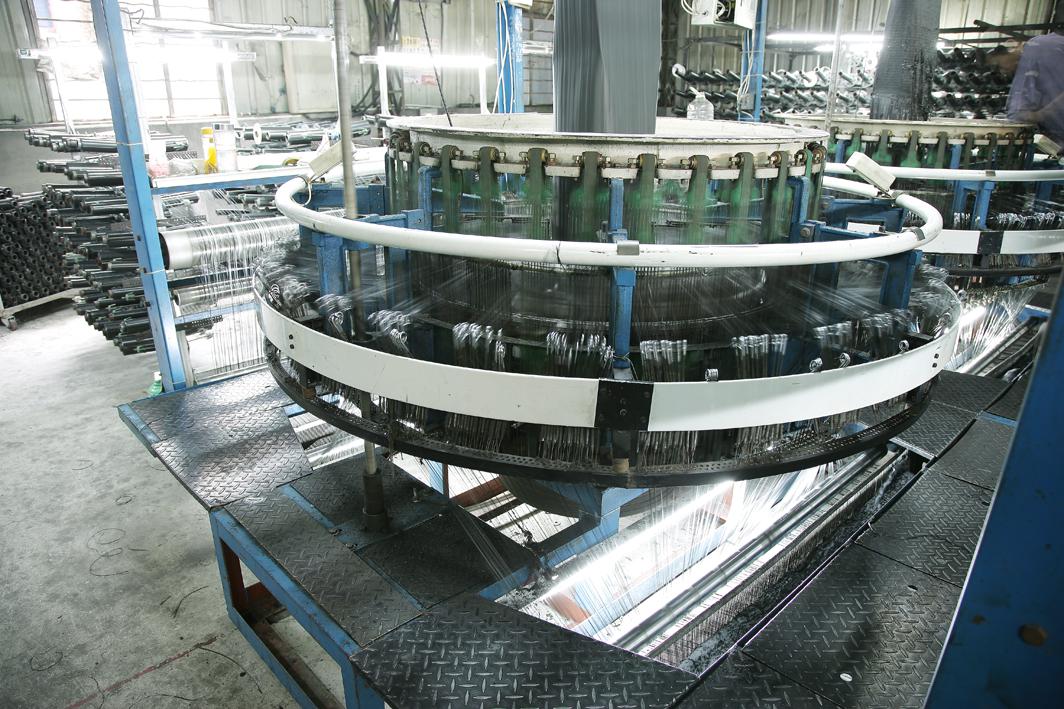

Split Film Yarn Woven Geotextile are made by weaving flat strands created by first slitting plastic sheet. Woven split-film geotextiles are typically preferred for applications where filtration requirements are less critical. These geotextiles aid in construction over soft or weak soils by providing separation and stabilization.
Specifications:
| PROPERTY | ASTM TEST METHOD | Minimum Average
Roll Values
English | Minimum Average
Roll Values
Metric |
| Weight (Typical) | ASTM D 5261 | 4.5 oz/yd2 | 155g/m2 |
| Grab Tensile | ASTM D 4632 | 230 lbs | 1025 N |
| Grab Elongation | ASTM D 4632 | 15% | 15% |
| Trapezoid Tear | ASTM D 4533 | 85 lbs | 377 N |
| CBR Puncture Resistance | ASTM D 6241 | 800 lbs | 3566 N |
| Permittivity | ASTM D 4491 | 0.05 sec-1 | 0.05 sec-1 |
| Water Flow Rate | ASTM D 4491 | 5 gal/min/ft2 | 203 L/min/m2 |
| AOS | ASTM D 4451 | 40 US Std.Sleve | 0.430 mm |
| UV Resistance | ASTM D 4355 | 70% @ 500 hrs | 70% @ 500 hrs |
| | | | |

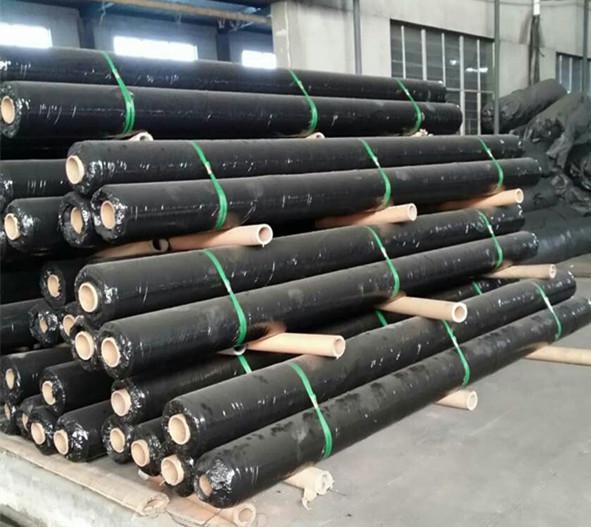

| ROLL DIMENSIONS |
| Roll Width | 3.81m(12.5’) | 4.56m(15') | 5.32m(17.5') |
| Roll Length | 132m(432’) | 109m(360') | 94m(309') |
| Roll Weight | 90kgs(198lbs) | 90kgs(198lbs) | 90kgs(198lbs) |
Features:
Color: Black / Customized
Temperature Range: 0°C ~ +150°C
Durability: The characteristics of synthetic fiber is not easy to be denatured .It can keep its original features.
Storage and transportation is convenient: Because of light weight, packing can be according to certain requirements, so the transport, storage, construction is very convenient .
Applications:
Separation
Acts as a separator between two layers of soil in road construction and rail works. Our fabric is having strength, high puncture resistance and appropriate elongation features required for road and rail works.
Protection
It prevents the bank from being washed out, protects the bank and the bottom, prevents the water and soil from being washed away.
